Contextual Fit

Analysis & Design of Adding on

The objective of this project was to design an addition to an existing structure using surrounding context. By analyzing the various systems of the original structure, in addition to the location, landscape, and culture around the structure, we extruded our design. The model used was "Smith House", designed by Richard Meier in 1965, located on the Long Island Sound.


Narrative

Michael Anderson is an architect with a license. He has decided to buy the Smith house to begin his new life. Mr. Anderson believes that this is a great site for his family to live in. He has requested that an addition be made, with the main focus being on a big, two-story family room. Mr. Anderson is a very busy man, spending time with his family is extremely essential to him. Mr. Anderson intends to use this area as a huge living room in which his children can play and entertain friends and relatives. He also wants to make the most of the outside space and deck space to enjoy the view of the ocean. In this design, the interplay between outside and internal space is crucial. As an architect, Mr. Anderson is cautious in ensuring that the new addition blends in with the existing structure.

Hierarchy

 Family Room

​

​

Sorting of Space

​


Contextual Analysis

Original Floor Plans

Lower Level

Entry Level

Upper Level

floor plas.jpg

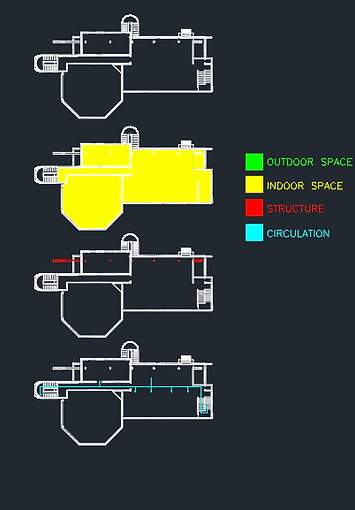

Analysis

floor plan 1.jpg
floor plan 2.jpg

Conceptual Ideas

LOWER LEVEL

CONCEPTIAL IDEAS FLOOR PLANE ENTRY.jpg

ENTRY LEVEL

CONCEPTIAL IDEAS FLOOR PLANE L.jpg

UPPER LEVEL

Smith House Thaina Final presentatib- PRE- design 1.png
Smith House Thaina Final presentatib-PRE DESIGN 3_edited.jpg
Smith House Thaina Final presentatib- PRE DESIGN 2_edited.jpg

Preliminary Design

Smith House Thaina Final presentatiPreliminary Design2.png
Smith House Thaina Final presentatib-Preliminary Design 1.png

Final Design

final 2_edited.jpg
final 3.png

Final Plans

LOWER LEVEL

lower level.jpg

ENTRY LEVEL

entry level_edited.jpg

UPPER LEVEL

upper level.jpg

Elevations 2D

left view south.jpg
left view east.jpg
left view north.jpg

Sections 2D

Front View


Back View


Sections 3D

Smith House Thaina Final presentatib SECTION 3D.png

Exterior 3D

3d 1.jpg
3d 3.jpg
3d 3.jpg

Interior 3D

3d 2.jpg
3d ....jpg

Animation

animation 3.gif
